Wheel Stock
Old age and ill health has caused most UK wheel manufactures to cease production therefore it is very difficult to source wheels in any scale. New potential suppliers are being approached but it is very expensive to recreate once well respected brands.
NEW EASY SELF QUARTERING SCALELINK Locomotive Driving Wheels - 12mm gauge (nickel silver tyres) ROMFORD TYPE RP25 profile plastic centred
| WR2017 |
£8.25 |
20mm dia 17 spoke Driving Wheel Set Plastic Centres RP25 profile code88, These wheels are supplied as a single wheel set comprising 2 plastic centred insulated wheels, Romford axle with axle nuts, complete with two crankpins and washers. |
|
||
| WR1916 | £8.25 |
NEW 19mm dia 16 spoke Driving Wheel Set Plastic Centres RP25 profile code88, These wheels are supplied as a single wheel set comprising 2 plastic centred insulated wheels, Romford axle with axle nuts, complete with two crankpins and washers. |
|||
| WR1816 |
£9.00 |
18mm dia 16 spoke Driving Wheel Set Plastic Centres RP25 profile code88, These wheels are supplied as a single wheel set comprising 2 plastic centred insulated wheels, Romford axle with axle nuts, complete with two crankpins and washers. |
|||
| WR1612 |
£8.25 |
16.5mm dia 12 spoke Driving Wheel Set Plastic Centres |
|||
 |
|||||
|
WR1512 |
£8.25 |
15mm 12 spoke Driving Wheel Set Plastic Centres |
|||
|
WR1412 |
£8.25 |
14mm 12 spoke Driving Wheel Set Plastic Centres |
|||

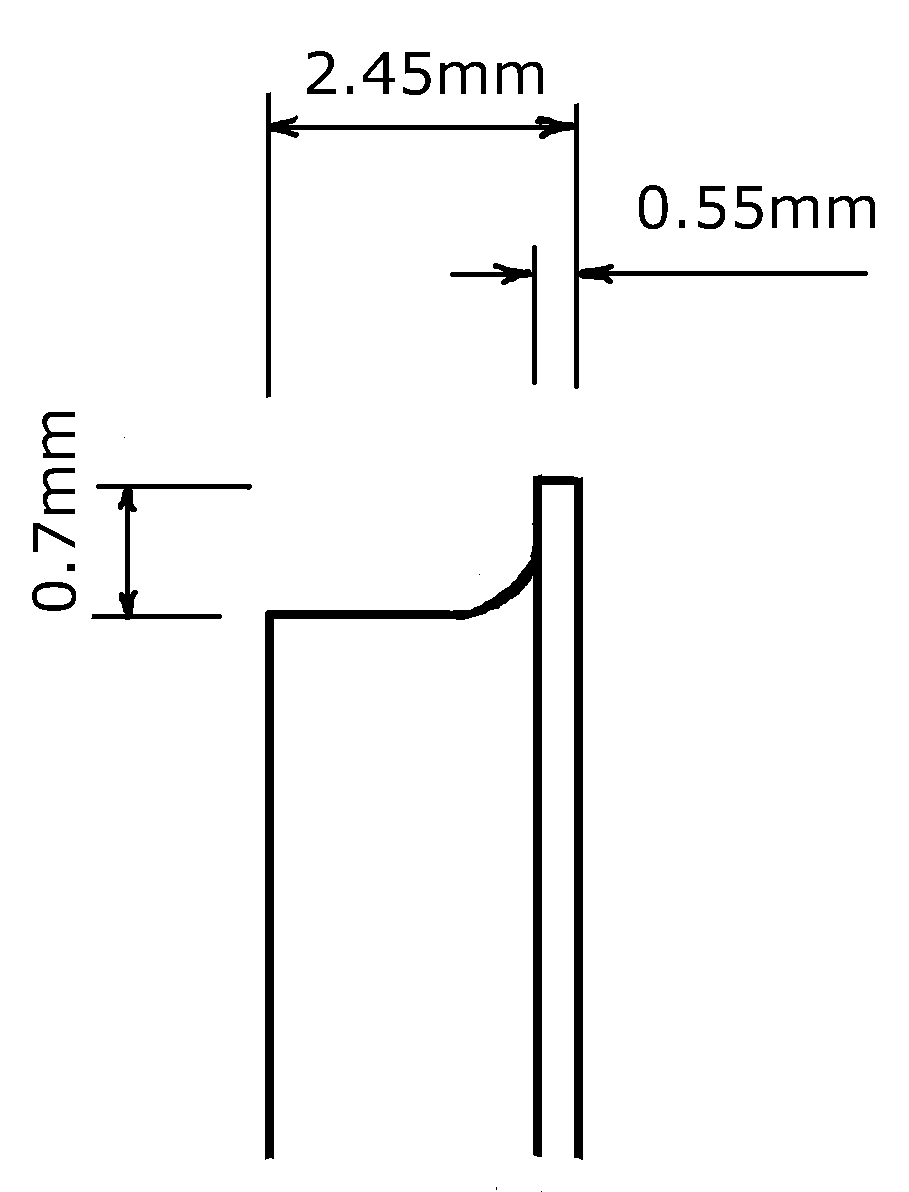

Scalelink range Profile |
|||||
ROMFORD TYPE RP25 profile die-cast metal wheels. Romford no longer are manufacturing.
|
|||||
| WR20/18i | £4.60 |
20mm dia 18 spoke insulated Driving Wheel |  |
||
| WR20/18p | £4.60 |
20mm dia 18 spoke plain Driving Wheel | |||
|
WR20/16i |
£4.60 |
20mm 16 spoke Insulated Driving Wheel each |
|||
|
WR20/16iU |
£4.60 |
20mm 16 spoke Insulated Driving Wheel unflanged each |
|||
| WR20/16p |
£4.60 |
20mm 16 spoke Plain Driving Wheel each Romford Die Cast while stock lasts |
|||
| WR20/16pU |
£4.60 |
20mm 16 spoke Plain Driving Wheel unflanged each Romford Die Cast while stock lasts |
|||
| WR19/18i | £4.60 |
19mm dia 18 spoke insulated Driving Wheel | |||
| WR19/18p | £4.60 |
19mm dia 18 spoke plain Driving Wheel | |||
|
WR18/14i |
£4.60 |
18mm 14 spoke Insulated Driving Wheel each |
|||
|
WR18/14p |
£4.60 |
18mm 14 spoke Plain Driving Wheel each |
|||
| WR16.5/18 |
£9.50 |
16.5mm 18 spoke Driving Wheel Set |
 3mm intermediate scale Romford 5' 6" 18 spoke;driving wheel WR16.5/18 |
||
| WR15/15i | 15mm dia 15spoke insulated Driving Wheel Not avalable | Alternative plastic centred RP25 code 79 now available for 12mm gauge TT axles | |||
| WR15/15p | 15mm dia 15spoke plain Driving Wheel Not avalable | Alternative plastic centred RP25 code 79 now available for 12mm gauge TT axles | |||

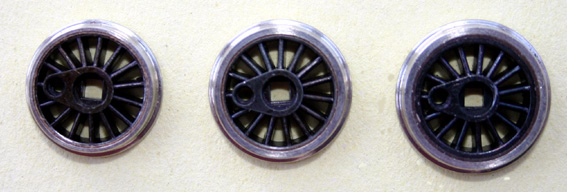

| WR14/15i | £4.60 |
14mm dia 15spoke insulated Driving Wheel each | New die cast Romford Style Metal wheels |
||
| WR14/15p | £4.60 |
14mm dia 15spoke Plain Driving Wheel each |  |
||
| WR13/15i | £4.60 |
13mm dia 15spoke Insulated Driving Wheel each | |||
| WE13/15p | £4.60 |
13mm dia 15spoke Plain Driving Wheel each | |||
| WR12.5/15i | £4.60 |
12.5mm dia 15spoke Insulated Driving Wheel each | |||
| WR12.5/15p | £4.60 |
12.5mm dia 15spoke Plain Driving Wheel each | WR12.5/15
|
WR13/15 |
WR14/15 |
NEW Coach and Wagon and Bogie Wheel Range |
|||||
| WR10.5sb |
£2.50
|
10.5mm 10 spoke Bogie wheels on 12mm gauge axles | |||

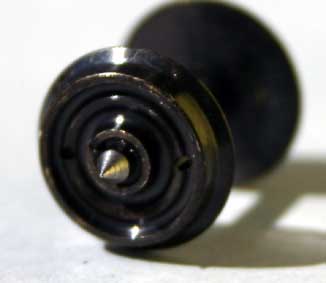

| WR10.5dc |
£2.65
|
10.5mm 2 hole disc wheels for BR mk2 coaches on pinpoint axle | |||
ROMFORD Locomotive & Tender Wheels - 12mm gauge (1 pair of wheels on axle)Romford no longer are manufacturing wheels. Alternatives are produced by Markits they replace existing stocks. |
|||||
|
WR09si/b |
£2.65 |
9mm 10 spoke insulated Bogie Wheels plain axle per axle |
|||
|
WR09si/t |
£2.65 |
9mm 10 spoke insulates Tender Wheels pin-point axle per axle |
|||
|

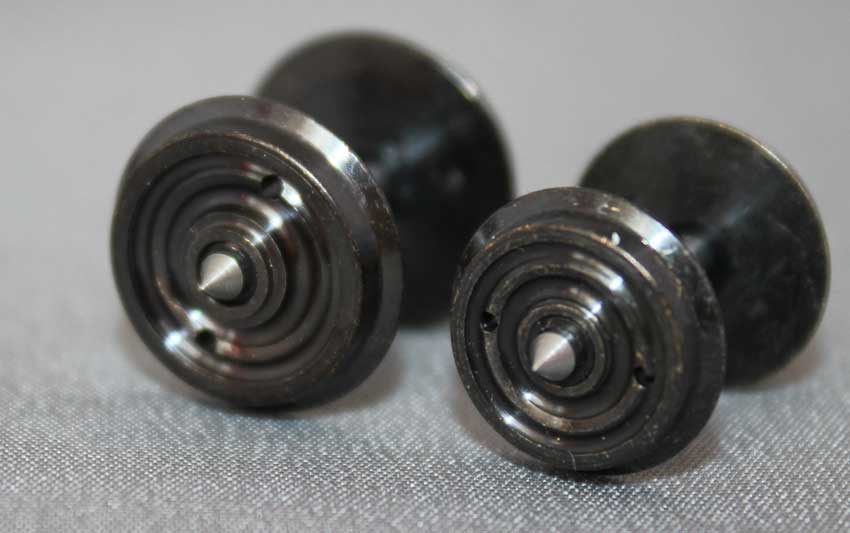

WR10.5si/b |
£2.65 |
10.5mm 10 spoke insulated Bogie Wheels plain axle per axle |
|||
|
WR10.5si/t |
£2.65 |
10.5mm 10 spoke insulated Tender Wheels pin-point axle per axle |
|||
|
WR12si/t |
£2.65 |
12 mm 10 spoke insulated Tender Wheels pin-point axle per axle |
|||
|
WR12di/t |
£2.65 |
12 mm disc insulated Tender Wheels pin-point axle per axle |
|||
|
WR09di/b |
£2.65 |
9mm disc insulated Bogie Wheels plain axle per axle |
|||
|
WR10.5di/b |
£2.65 |
10.5mm disc insulated Bogie Wheels plain axle per axle |
|||
ROMFORD Rolling Stock Wheels - 12mm gauge (1 pair of wheels on axle) |
|||||

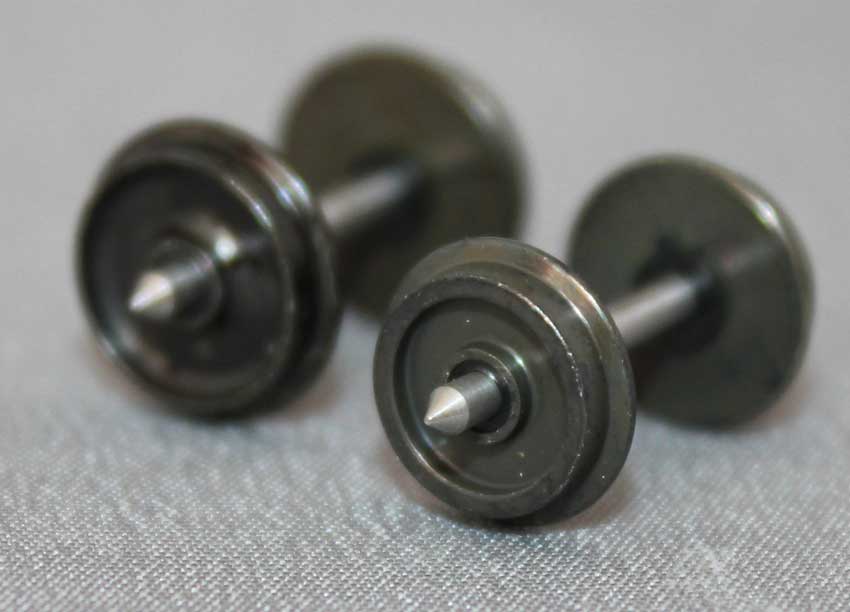

| WR07di/w | £2.60 | 7mm disc insulated Wagon Wheels pin-point axle per
axle |
|||
| WR09di/w | £2.60 | 9mm disc insulated Wagon Wheels pin-point axle per axle | (See also WJ09di/w Finescale Wheels ) | ||
| WR10.5di/c | £2.60 | 10.5mm disc insulated Coach Wheels pin-point axle per axle | |||
ROMFORD Wheel & Chassis Accessories |
|||||
|
RA11 |
£5.82 |
Special axle nut screwdriver each |
|||
|
R314 |
£1.15 |
Crankpins (including washers) set of 4 |
|||
|
R316 |
£1.70 |
Crankpins (including washers) set of 6 |
|||
|
R318 |
£2.20 |
Crankpins (including washers) set of 8 |
|||
|
R33 |
£1.00 |
Thin brass crankpin washers pkt |
|||
|
R34 |
£1.00 |
Thin fibre spacing washers pkt |
|||
|
R35 |
£1.00 |
Assorted brass & fibre washers pkt |
|||
|
R62 |
£1.50 |
Brass washers 10 each 0.005",0.010" & 0.015" pkt |
|||
|
RA1 |
£1.00 |
Driving Wheel Axle and nuts each |
|||
|
RAX1 |
£1.75 |
Extended driving Wheel Axle and nuts each |
|||
| RAXOO | £1.10 |
Driving Wheel AxleOO gauge and nuts each | |||
| RAXOOHK | £1.10 |
Driving Wheel AxleOO gauge OO Knurled Triang/Hornby type and nuts each | |||
| RAXEM | £1.10 |
Driving Wheel Axle EM gauge and nuts each | |||
| RAXHOn3 | £1.10 |
Driving Wheel Axle HOn3 N gauge and nuts each | |||
|
RC1 |
£1.75 |
Etched Black Axle-nut Cover 18 & 20mm wheels pkt of 10 |
|||
|
RC2 |
£1.75 |
Etched Black Axle-nut Cover 14 & 15mm wheels pkt of 10 |
|||
|
RS2 |
£0.20 |
Spare axle-nut each |
|||
| RS9 |
£0.15
|
Spare thick crankpin washer each | |||
|
L506 |
£1.50 |
Set of 6 Brass Etched Q1 wheel disc insert 13.5mm dia |
 |
||
KEAN-MAYGIB Locomotive Driving Wheels - 12mm gauge (2 wheels & 1axle)Kean Maygib fine 3mm scale profile wheels are no longer available.
|
|||||
| WKM.366 |
£5.00
|
19.5mm 20 spoke 6ft 6ins Driving Wheel (per axle) | (Limited stock ) | ||
| WKM.360 |
£5.00
|
18.0mm 18 spoke 6ft 0ins Driving Wheel (per axle) | (Limited stock ) | ||
| WKM.356 |
£4.50
|
16.5mm 18 spoke 5ft 6ins Driving Wheel (per axle) | limited stock | ||
KEAN-MAYGIB Locomotive & Tender Wheels - 12mm gauge (2 wheels & 1axle) |
|||||
| WKM.330 |
£2.65
|
9.0mm 10 spoke 3ft 0ins Bogie Wheels plain axle (per axle) | limited stock | ||
| WKM.340 |
£2.65
|
12.0mm 12 spoke 4ft 0ins Tender Wheels pin-point axle | limited stock | ||
| WKM.341 |
£2.65
|
12.0mm Disc 4ft 0ins Tender Wheels pin-point axle (per axle) | limited stock | ||
| WKM.342 |
£3.00
|
12.75mmDisc 4ft 3ins Tender Wheels pin-point axle (per axle) | limited stock | ||
FineScale Rolling Stock Wheels - 12mm gauge (1 pair of wheels on axle) |
|||||
| WJ09di/w |
£2.60
|
9.0mm Disc Wagon Wheels round-point axle |
( Special offer of these Jackson wheels 12 for £24 )
|
||

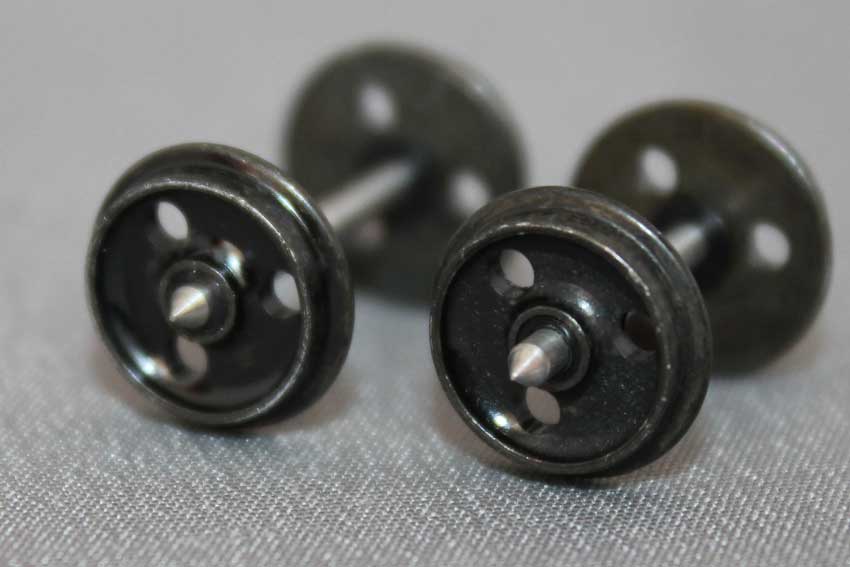

| WKM3002-12 |
£TBA
|
9.0mm 3-hole disc Wagon Wheels pin-point axle (not available) |  |
||
| WKM3005-12 |
£TBA
|
10.5mm disc Coach Wheels pin-point axle (not yet available) | |||
| WKM3007-12 |
£2.65
|
8.0mm 2-hole disc Wagon Wheels pin-point axle (per axle) | |||
FineScale Rolling Stock Wheels - 14.2mm gauge |
|||||
| WJ09di/w14 |
£2.60 |
9.0mm Disc Wagon Wheels round-point axle |
( Special offer of these Jackson wheels 12 for £24 ) |
||
| WKM.3000-14 |
£TBA
|
9.0mm 8 spoke Wagon Wheels pin-point axle (not available) | |||
| WKM.3002-14 |
£TBA
|
9.0mm 3-hole disc Wagon Wheels pin-point axle (not available) | |||
| WKM.3005-14 |
£TBA
|
10.5mm disc Coach Wheels pin-point axle (per axle) | |||
| WKM.3007-14 |
£2.65
|
8.0mm 2-hole disc Wagon Wheels pin-point axle (per
axle) |
|||
|
|||||
| WKM.422/6 |
£4.00
|
Crankpins (including washers) set of 6 | limited stock | ||
Mechanical Parts & Accessories |
|||||
| MR8 | £2.60 | PECO Fibre Washers (bogie axles) pkt of 50 (out of stock) | |||
| MR9 | £2.60 | PECO Fibre Washers (driving axles) pkt of 50 | |||
| WBTBTT | £6.65 | Wheel Back-to-Back gauge for 12mm track each | |||
| WBTBP3 | £6.65 | Wheel Back-to-Back gauge for 14.2mm track each | |||
| MFW8 | £2.75 | Motor Flywheel 8mm dia. 1.5mm bore each | |||
| MU22 |
£2.50
|
Waisted pin-point bearings pkt of 40 Rim dia 3mm, Max body dia 2mm, length 2.3mm |
 |
||
| MU23 | £2.50 |
Tophat pin-point bearings pkt of 40 Rim dia 3mm, body dia 2mm, length 2.5mm |
 |
||
| MU24 | £2.50 |
Rimless pin-point bearings pkt of 40 body dia 2mm, length 2.38mm |
 |
||
|
|
|
|
|||
WHEELS LISTING FOR SPECIFIC LOCOMOTIVES CLICK HERE |
