MECHANICAL COMPONENTS

Electric Motors - 12 volt
Ref Price Description
OPEN FRAME MOTORS

MLH21
£16.95
Tenshodo Mk 1 5-pole 21mm x 9.5mm x 13mm
MLH19
£16.95
Tenshodo Mk 2 5-pole 19mm x 9.5mm x 13mm
MLH17
£18.50
Tenshodo Mk3 5-pole 17mm x 9.5mm x 13mm
MH1024
£19.95
DS10 5-pole 24mm x 10mm x 15mm
(Very Limited stocks Now out of Production)
M16K £29.95 Mashima 5-pole 16mm x 9.0mm x 13mm
(Very Limited stocks Now out of Production)
CAN MOTORS (Limited stocks Now out of Production)

MHK1015
£22.50
Mashima Can Motor 15mm x10mm x12mm
MHK1020
£23.00
Mashima Can Motor 20mm x10mm x12mm
MHK1024
£22.50
Mashima Can Motor 24mm x10mm x12mm
MHK1220 £23.00 Mashima Can Motor 20mm x12mm x13mm
MHK1224 £23.50 Mashima Can Motor 24mm x12mm x13mm
MHK1620 £25.00 Mashima Can Motor 20mm x16mm x13.6mm
MHK1624 £25.00 Mashima Can Motor 24mm x16mm x13.6mm
MHK1626 £25.00 Mashima Can Motor 26mm x16mm x13.6mm
MHK1628
£25.00
Mashima Can Motor 28mm x16mm x13.6mm
MARKITS GEARBOXES (MM210 series suit H1024 motors:MM208 suit smaller motors) Allows direct drive to axle with motor at desired angle in firebox or side tanks.
MM208/20N
£16.55
Motor Mount with 20:1 SLIMLINE Gear Set (incl. bearings)
MM208/33N
£14.00
Motor Mount with 30:1 SLIMLINE Gear Set (incl. bearings)
MM208/40N
£14.00
Motor Mount with 40:1 SLIMLINE Gear Set (incl. bearings)
MM108/60N
£18.00
Motor Mount with 60:1 SLIMLINE Gear Set (incl. Bearings)

MM210/20N
£16.55
Motor Mount with 20:1 SLIMLINE Gear Set (incl. bearings)
MM210/33N
£16.95
Motor Mount with 30:1 SLIMLINE Gear Set (incl. bearings)
MM210/40N
£14.00
Motor Mount with 40:1 SLIMLINE Gear Set (incl. bearings)
MM210/60N
£14.00
Motor Mount with 60:1 SLIMLINE Gear Set (incl. Bearings)


Note: The MM208 mounts have 8mm hole centres to mount the MLH, MHK and MK motors Width 6.8mm when folded fits between 7mm wide frames. The MM208 series suits most motors with 8mm fixing centers and can be adapted to fit Mashima motors with 8.5mm centre fixing.
The MM210 Mounts have 10mm hole centres to mount the MH1024 and larger motors with 10mm centres. Width 6.8mm when folded.

High Level GEARBOXES (MHL8 suit smaller motors) Allows motor to sit inside boiler and adjust hieght above chassis

High Level Slim Liner
MHL8/33S
£22.50
Motor Mount with 30:1 SLIMLINER Gear Set (incl. bearings)
MHL8/40S
£22.50
Motor Mount with 40:1 SLIMLINER Gear Set (incl. bearings)
MHL8/54S
£22.50
Motor Mount with 54:1 SLIMLINER Gear Set (incl. Bearings)

The MHL8 series suits most motors with 8mm fixing centers and 8.5mm centres to fit Mashima Can motors with 8.5mm width fixing.
Note: The MH1024 motor has 10mm hole centres to mount and will not fit these High Level gearboxes.







Order all of these items through www.motorbogies.com for all gauges including OO and N gauge to order direct
NEW MICRO MOTORS
Micro Motors can not be used with the gearboxes, only pulleys and belt drives. Order all of these items through www.motorbogies.com
M610 £8.50 6 volt rated 6mm dia x 10mm long Micro Motor with dropper resistor

6VMicroMotors

6VMicroMotorDims

M612
£8.95
6 volt rated 6mm dia x 12mm long Micro Motor with dropper resistor
M816 £8.95 6 volt rated 8mm x 16mm Micro Motor with droper resistor for 12V

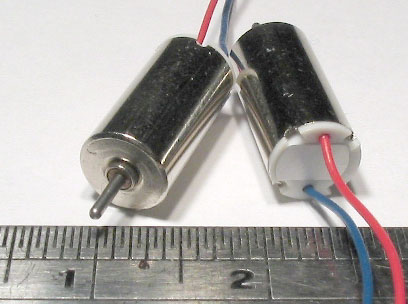

This motor is the breakthrough in micro motor technology. Although the standard micro motors have enough power to drive the small locos they cannot easily be set up to run on 12Vdc. The 6V micro motor, which has been made to order (special windings on standard motor frame), overcomes this problem. A suitable resistor can be used to drop half of the supply voltage allowing full standard 12V dc operation from the usual model railway controllers. Because of the increased operating voltage and reduced current draw the power which is dissipated in this dropper resistor is now minimal (about 0.3W) so it can easily be mounted on board very small vehicles. Surface mount style resistors can be used where space is seriously short.

Each motor is supplied with a 'standard' dropper resistor and a simple brass shaft adapter to convert the 0.8mm shaft up to 1.5mm as per standard gearbox requirements.

You may be thinking 'why not a 12V micro motor?'. The evidence is pretty clear that a 12V motor this size is more or less impossible from a technical standpoint. Its all to do with how many turns of wire you need and how thin the wire needs to be as a result!


M1012
£8.95

12 volt rated 10mm dia x 12mm long Micro Motor.

Similar to above motor but larger diameter body. Each motor is supplied with a simple brass shaft adapter to convert the 0.8mm shaft up to 1.5mm as per standard gearbox requirements.

Have a look at various mounting and drive options see picture and click here CLAG for other options to consider.

Axle drive
MB12/09D

Ready to Run Motor Bogie 12mm or 14.2mm gauge with adjustable wheelbase

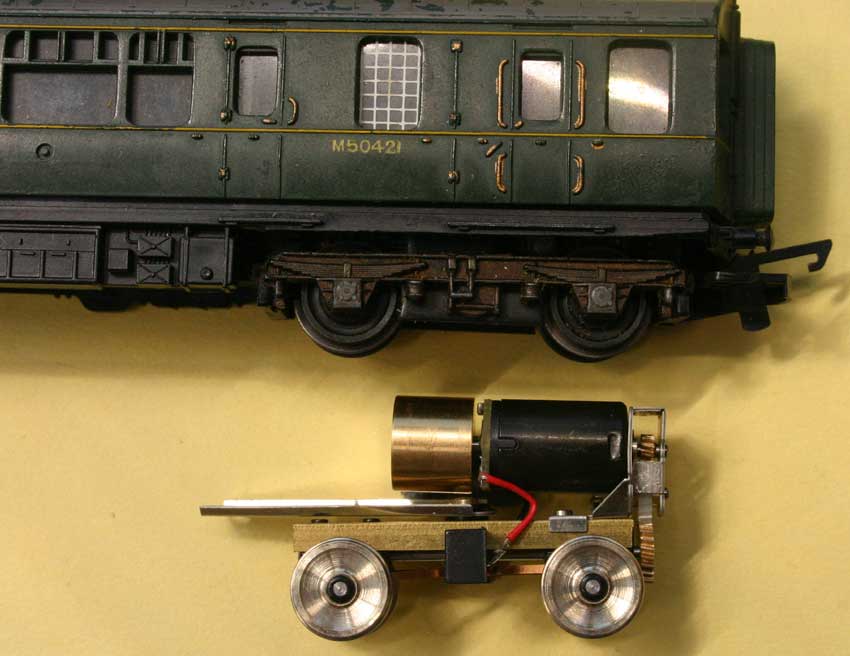

Super smooth ready to run motor bogies ideal for DMU's , electric units and some diesels. The unit comes with 9mm dia disc wheels and an adjustable wheelbase offering 23mm wheel centres for 8' cast bogie sides, 26.5mm for 9' or 30mm 10' wheel centres One bogie in a weighted body will pull a six coach train with ease. Available with 9mm disc wheels as standard.

Spoke wheels can be provided and 10mm dia wheels but they only fit with the 30mm centre spacing. (price on application)

MB12/09D
MB12/07D

Ready to Run Motor Bogie 12mm or 14.2mm gauge with adjustable wheelbase

Super smooth ready to run motor bogies ideal for DMU's , electric units and some diesels. The unit comes with 7.5mm dia disc wheels and an adjustable wheelbase offering 23mm wheel centres for 8' cast bogie sides, 26.5mm for 9' or 30mm for 10' wheel centres One bogie if in a weighted body will pull six coach train with ease. 7.5mm dia disc wheels as standard. This is suitable for 1:120 scale American or continental locos.

Spoke wheels can be provided. (price on application)

MB12/07D
2 axle Bo-Bo Motor Bogie + Dummy Bogie Set (with all wheel pick up)
All with 10.5mm Disc P4 profile wheels and MHK1015 motors. Note: These motor bogies need running for super smooth performance.
MBA12/18   12mm Gauge 6’ (18mm) centres MHK1015 Motor
MBA12/25.5   12mm Gauge 8’6”(25.5mm) centres
MBA12/30.75   12mm Gauge 10'3 (30.75mm) centres
MBA12/31.5   12mm Gauge 10’ 6” (31.5mm).centres


MBA12/27.5   12mm Gauge 9' 0"(27.5mm) centres without dummy
14.2mm Gauge can be obtained but due to lack of pre-orders these are not stock items therefore costs will be at higher one off prices.
MBA14/18   14mm Gauge 6’ (18mm) centres MHK1015 Motor
MBA14/20.25   14mm Gauge 6'9" (20.25mm) centres
MBA14/25.5   14mm Gauge 8’6”(25.5mm) centres
MBA14/30.75   14mm Gauge 10'3 (30.75mm) centres
MBA14/31.5   14mm Gauge 10’ 6” (31.5mm).centres
    How to convert a 4051 loco

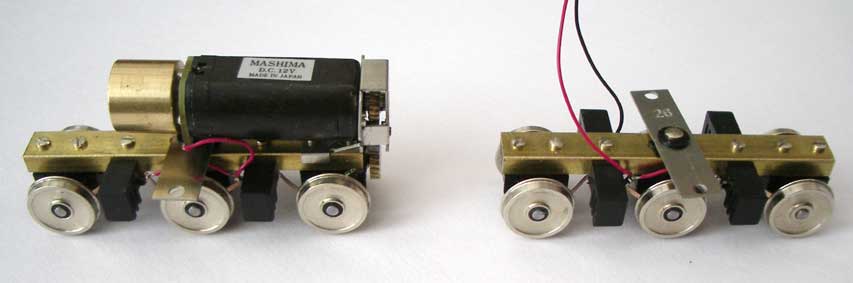

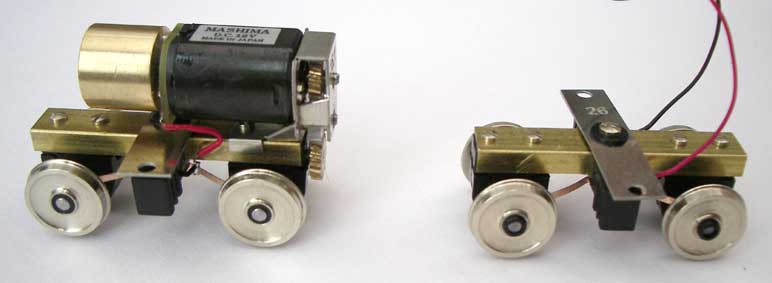

Bull Ant 3 axle Co-Co Motor Bogie MHK1024 Motor + Dummy (with all wheel pick up)
All with 10.5mm Disc P4 profile wheels and MHK1024 motors. Note: These motor bogies need a short period of running in for super smooth performance.
MBA12/1818   12mm Gauge 12'2 (36.7mm) wheelbase and 6'1" (18.2mm) centres Suitable for Western

MBA12/2121   12mm Gauge 14' (42mm) wheelbase 7' centres (21mm)suitable for Class 31 or A1A replacement.

14.2mm Gauge can be obtained but due to lack of pre-orders these are not stock items therefore costs will be at higher one off prices.
MBA14/1818   14.2mm Gauge 12'2 (36.7mm) wheelbase and 6'1" (18.2mm) centres Suitable for Western

MBA14/2121   14.2mm Gauge 14' (42mm) 7' centres (21mm) suitable for Class 31 or A1A replacement.
Bull Ant 3 axle Tender Drives with MHK1024 Motor (with all wheel pick up)
MBA12/19.519.5   3 Powered axle tender drive with 19.5mm centres (6'6") ideal for GWR and Adams Tenders with spoke wheels
MBA12/2121D   3 Powered axle tender drive with 21mm centres (7'0") ideal for BR Tenders with disc wheels


Bull Ant 3 axle Major Tender Drives with MHK1524 Motor (with all wheel pick up)
    These Tender Drives can be made to order.
MBAM Major   3 Powered axle tender drive with 21.75mm centres (7'6") ideal for BR Large Tenders with spoke wheels
Mechanical Parts & Accessories
WBTBTT   Wheel Back-to-Back gauge for 12mm track each
WBTBP3   Wheel Back-to-Back gauge for 14.2mm track each
MFW8 OS Motor Flywheel 8mm dia. 1.5mm bore each
MR8
£ 2.60
PECO Fibre Washers (bogie axles) pkt of 50
MR9
£ 2.60
PECO Fibre Washers (driving axles) pkt of 50
MFW8
£ 3.50
Motor Flywheel 8mm dia. 1.5mm bore each
MU22
£ 2.50
Waisted pin-point bearings pkt of 40
approx 1.8mm outside dia, 1.8mm length.
MU23
£ 2.50
Tophat pin-point bearings pkt of 40
approx 2mm outside dia, 2mm length.
MU24
£ 2.50

Rimless pin-point bearings pkt of 40
approx 2mm outside dia, 1.8mm length
